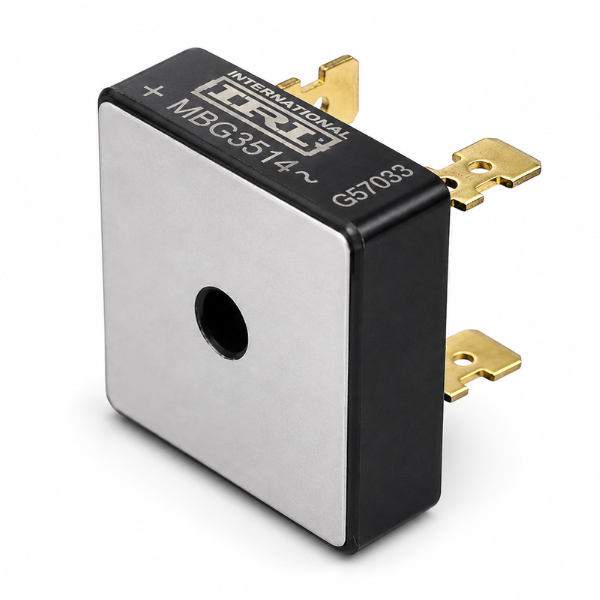

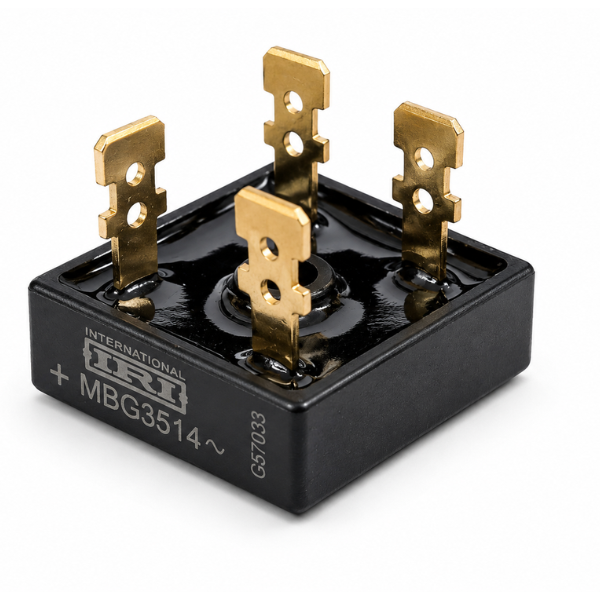

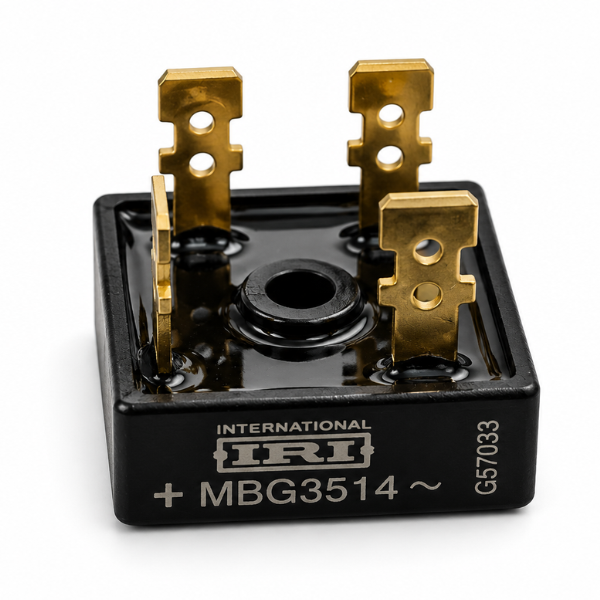

IRI, MBG 3514, 35amp 1400v Gold Plated Heavy Single Phase Bridge Rectifier

Product code : EK.IRI.MBG3514

Brand Name : IRI

Price: INR160.00

MPN: MBG 3514 Single Phase Bridge Rectifier
Ampear: 35
Volts: 1400
Pins: 4
Material: Brass Gold plated
The price shown is exclusive of GST.

/ 0 Reviews / Write a Review

Quantity

Add to Favorite Download PDF Print

Discounts available for larger quantities.

Full Description

Parameter	Value
Product Model	MBG 35/14
Bridge Type	Single Phase Bridge Rectifier
Average Forward Current (IDC)	35 A
Repetitive Peak Reverse Voltage (VRRM)	1400 V
Non-Repetitive Peak Reverse Voltage (VRSM)	1500 V
Surge Current (IFSM)	370 A
Forward Voltage Drop (VF)	1.17 V Max
Reverse Leakage Current (IRRM)	1 mA @ 25°C
Isolation Voltage	2500 V AC
Junction Temperature (Tj)	125°C Max
Thermal Resistance (Rth j-c)	1.2 °C/W
Mounting Torque	2.5 Nm
Weight	Approx. 20 g
Package Type	IR-10 / IR-11 / IR-12 / IR-13
Insulation	Epoxy Insulated
