Full Description
| Parameter | Value |
|---|---|

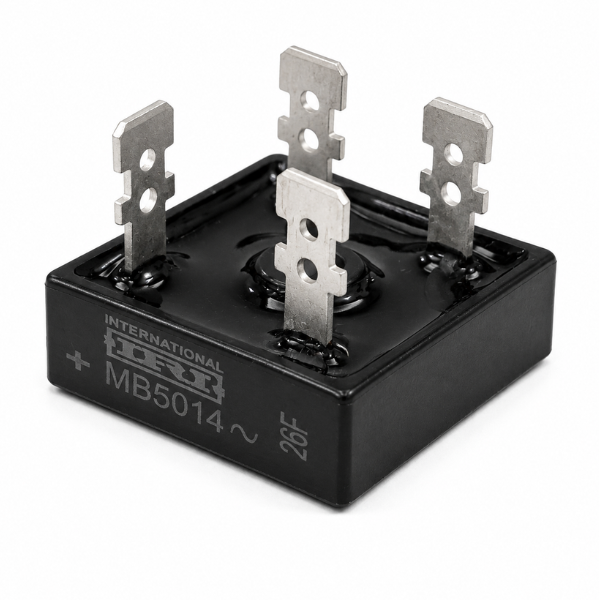

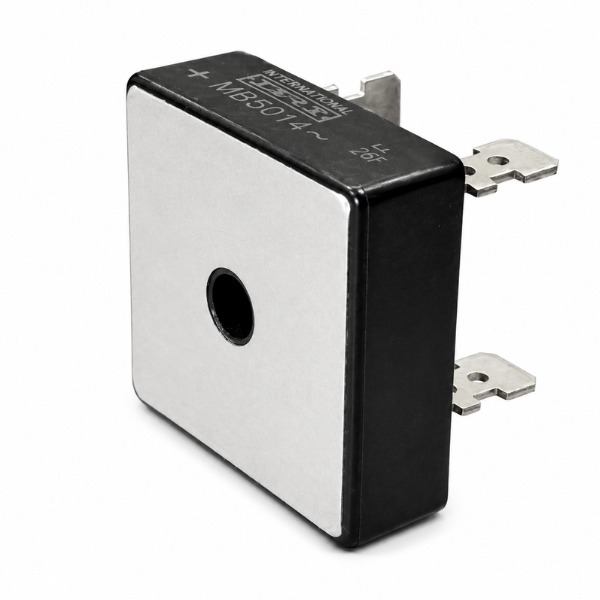

| Product Type | Single Phase Bridge Rectifier |
| Model | MB5014 |
| Manufacturer | IRI (Insel Rectifiers India Pvt. Ltd.) |
| Average Forward Current (IDC) | 50A |
| Repetitive Peak Reverse Voltage (VRRM) | 1400V |
| Non-Repetitive Peak Reverse Voltage (VRSM) | 1500V |
| Peak Surge Current (IFSM) | 500A |
| Forward Voltage Drop (VF) | 1.17V Max @ 50A |
| Reverse Leakage Current (IRRM) | 1mA @ 25°C |
| Reverse Leakage Current (IRRM) | 7mA @ 130°C |
| Junction Temperature (Tj) | 125°C Max |
| Storage Temperature (Tstg) | -40°C to +125°C |
| Isolation Voltage | 2500V AC (1 Minute) |
| Thermal Resistance (Rth j-c) | 1.1 °C/W |
| Mounting Torque | 2.5 Nm |
| Weight | Approx. 20g |
| Package Type | IR-10 / IR-11 / IR-12 / IR-13 |
| Insulation | Epoxy Insulated |
