Full Description

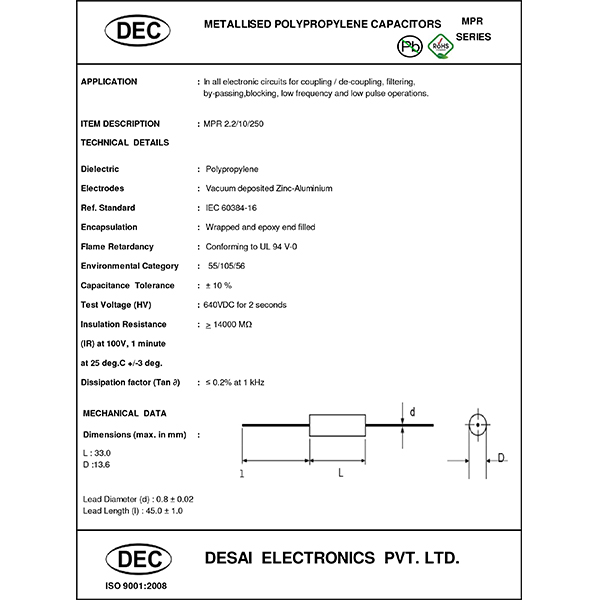

Download Datasheet: http://bit.ly/31upD0K
DEC Axial Capacitors: DEC Network plate capacitors are certified under IATF 16949:2016 and ISO 9001:2015. All its capacitors conform to IEC 384 and are RoHS compliant.
They are used in manufacturing DJ Sound consoles, Sound Bars, Heavy Speakers etc. Polypropylene & Polyester are two materials in which capacitors are available. Quality testing goes through the toughest phase because we make sure product should be finest. We don't compromise in raw material. All test certificates are available with each batch.
| ITEM DESCRIPTION : | MPR 2.2/10/250 |
| TECHNICAL DETAILS | |
| Dielectric : | Polypropylene |
| Electrodes : | Vacuum deposited Zinc-Aluminium |
| Ref. Standard : | IEC 60384-16 |
| Encapsulation : | Wrapped and epoxy end filled |
| Flame Retardancy : | Conforming to UL 94 V-0 |
| Environmental Category : | 55/105/56 |
| Capacitance Tolerance : | ± 10 % |
| Test Voltage (HV) : | 640VDC for 2 seconds |
| Insulation Resistance : | > 14000 MΩ |
| (IR) at 100V, 1 minute | |
| at 25 deg.C +/-3 deg. | |
| Dissipation factor (Tan ∂) : | ≤ 0.2% at 1 kHz |
